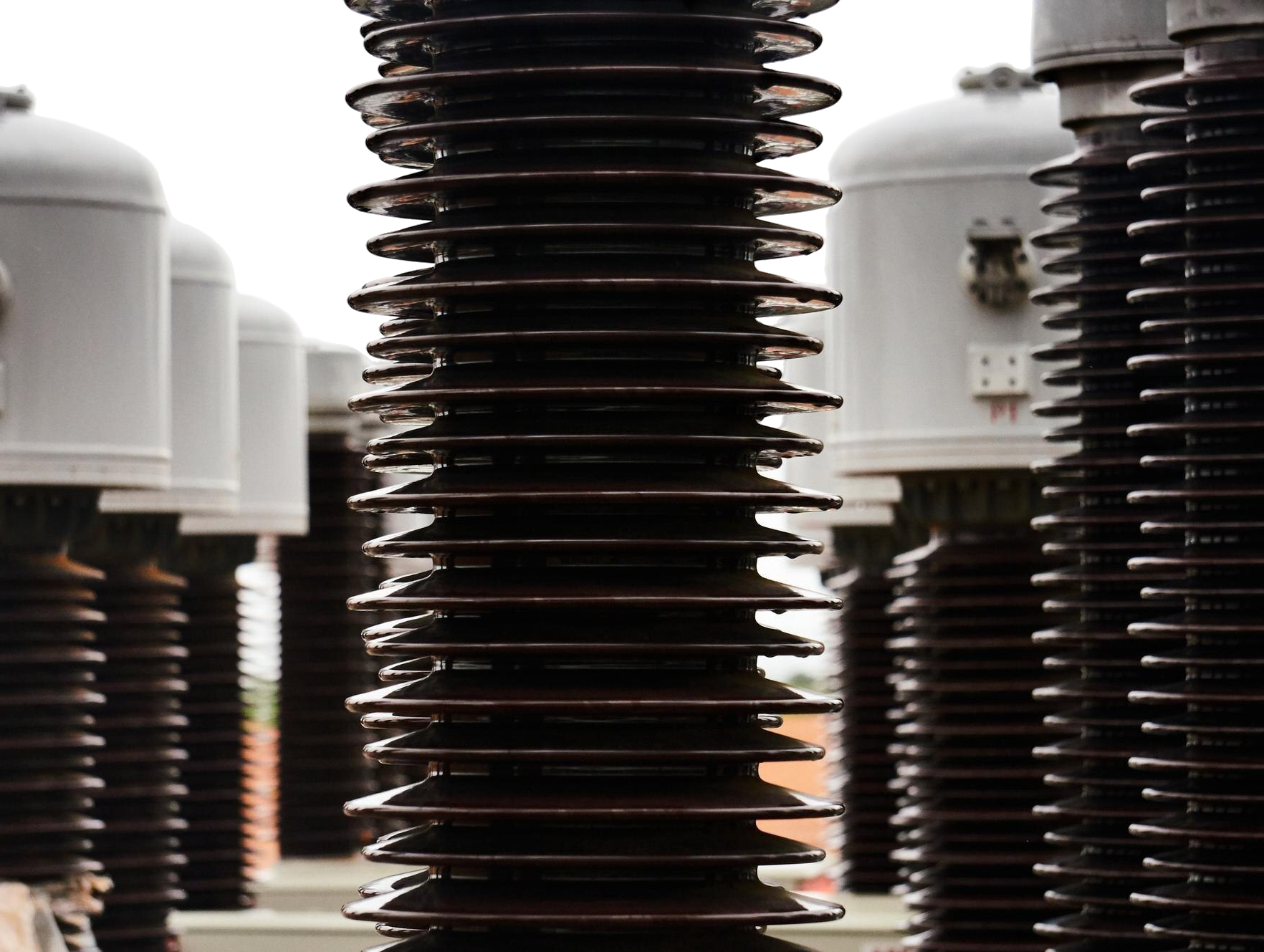

Porcelain Solid Core Insulators
Porcelain Solid Core Insulators are essential electrical components used in high-voltage transmission and distribution systems. These insulators are made from high-quality porcelain, offering exceptional mechanical strength, electrical insulation properties, and durability. They are primarily designed to support and insulate electrical conductors, protecting against electrical faults and ensuring the safety and reliability of power systems.
Key Features of Porcelain Solid Core Insulators:
High Insulation Resistance
Porcelain, being an excellent electrical insulator, ensures minimal leakage of current, even under high voltage conditions. This makes solid core insulators ideal for use in critical electrical infrastructure, including power stations and transmission lines.
Mechanical Strength
These insulators can withstand heavy mechanical loads and external environmental conditions, making them suitable for both overhead power lines and substation applications. The porcelain's inherent toughness ensures that they can endure mechanical stress and harsh weather conditions.
Weather Resistance
Porcelain solid core insulators are highly resistant to extreme weather, such as high temperatures, humidity, and icing. This makes them reliable in all kinds of geographical conditions—from humid coastal areas to dry, desert-like environments.
Long Lifespan
The durable nature of porcelain gives these insulators a long service life, often extending over several decades with minimal maintenance. This reduces replacement costs and ensures the stability of power networks over time.
Variants of Porcelain Solid Core Insulators:
Post insulators are used for high-voltage transmission lines and power plants, where they are mounted vertically. These insulators support the high-voltage conductors and provide electrical insulation between the conductor and the supporting structure.
o Voltage Rating: Typically used for voltages ranging from 33 kV to 765 kV.
o Capacity: Available in various mechanical load capacities from 70 kN to 210 kN, depending on the application.
Disc insulators, also known as porcelain disc insulators, are commonly used in transmission and distribution lines. They consist of a series of porcelain discs connected by metal fittings, offering improved mechanical strength and insulation properties.
o Voltage Rating: Available in voltages ranging from 33 kV to 1200 kV.
o Capacity: Designed to handle mechanical loads of 70 kN to 210 kN.
Line post insulators are used in overhead transmission and distribution lines. They are mounted horizontally and are designed to support the weight and mechanical load of electrical conductors.
o Voltage Rating: Typically used for voltages up to 132 kV.
o Capacity: Can handle mechanical loads up to 132 kV, depending on the size and design.
These insulators are specifically used for long-distance transmission lines and offer higher mechanical strength, providing both insulation and support for conductors.
o Voltage Rating: Up to 765 kV.
o Capacity: Suitable for use in high-voltage transmission lines, with a capacity of up to 210 kN.
Technical Specifications and Capacity
Porcelain solid core insulators are available for a wide range of voltages, from 33 kV to 1200 kV. These insulators are used in high-voltage and extra-high-voltage transmission lines and substations.
The mechanical strength of these insulators is typically rated from 70 kN to 210 kN, depending on the size and application. This load-bearing capacity ensures that the insulators can withstand external environmental forces such as wind, ice, and vibration.
Solid core insulators are designed in varying diameters to meet specific mechanical and electrical requirements. For instance:
o Fired Diameter: Up to 600 mm for some specialized insulators like the ESP (Electrostatic Precipitator) Insulators.
o Joined Diameter: Available in larger sizes like 2600 mm for single-piece insulators and 6800 mm for joined pieces.
Porcelain solid core insulators can withstand temperatures ranging from -50°C to 150°C, ensuring reliable performance even in extreme temperature conditions.
The insulators are made from a mix of high-grade porcelain and glass, which enhances the strength and electrical resistance, while also making them more resistant to environmental factors like UV rays, humidity, and temperature fluctuations.
Applications of Porcelain Solid Core Insulators
Transmission Lines
Porcelain solid core insulators are commonly used in overhead transmission lines, especially in high-voltage power networks. Their ability to provide insulation and withstand mechanical stress makes them essential for reliable power distribution.
Substations
They are also used in electrical substations, providing essential insulation between electrical conductors and the ground or supporting structure.
Power Plants
Solid core insulators are crucial components in power plants, ensuring safe and efficient transmission of electricity from power generation units to the grid.
